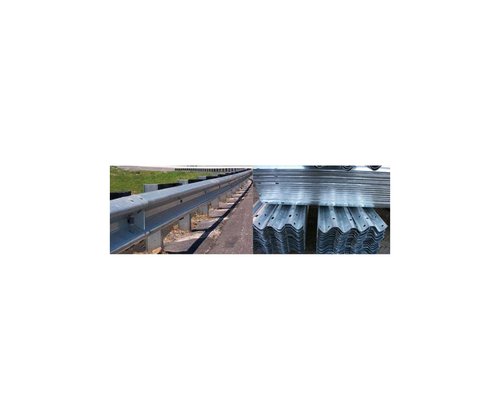

Beam Barrier

Beam Barrier
Beam Barrier
Product Code : EP22
Product Description

Product Specification : W-Metal Beam Crash Barriers are manufactured by the latest cold/hot roll technology as per AASTO specifications. All products are made from Fe 410 grade steel conforming to IS 5986 or IS 10748 or equivalent. Hot Dip Galvanized 550 gm/sq.m


W Beam:

  • Cold/Hot rolled formed section

  • 3 mm thickCR/HR sheet or as per client requirement


Post:

  • Anchored to foundation of Ground & Bridges

  • Channel section of 75 * 150 * 75 mm of 5 mm thickness.

  • 5 mm or as required CR/HR Sheet.

  • Lenght as per specifications.


Spacer:

  • Buffer between Post and W Beam

  • Channel section of 150 * 75 *5 mm


End Section:

  • Anglicized, Fish tail, or tubular end terminals.

Fasteners:

  • Hot dip or electro galavanized bolts, nuts, and washers conforming to IS 1367 of grade 4.6MS

  • 16 mm dia Button head bolts for W beam to W Beam and W Beam to Spacer connection & 16 mm dia Hexagonal head type bolts for spacer to post connection.
